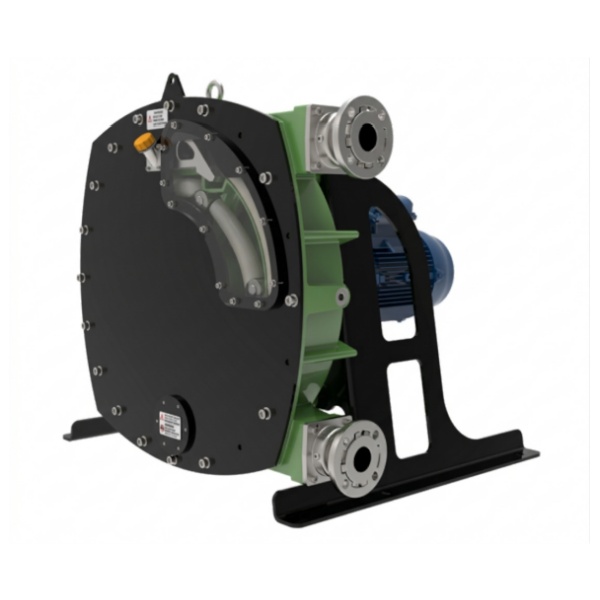

Verderflex Dura Series Peristaltic Hose Pump

Overview

The Verderflex Dura is an innovative, compact peristaltic hose pump engineered for demanding industrial dosing and transfer applications. Its unique close-coupled layout saves up to 70% in floor space compared to conventional peristaltic pumps while extending hose life and operational reliability.

Key Features & Advantages

• Compact Footprint: Occupies up to 70% less floor space thanks to its advanced close-coupled design.
• Precise Dosing: High metering accuracy within ±1% across varying operating pressures.
• Safe Dry-Running: Can run dry indefinitely without damaging internal components.
• High Suction Lift: Superior self-priming performance with up to 9.5 m wc suction lift.
• Air Gap Protection: Prevents process fluid from contaminating the motor gearbox in case of hose failure.
• Smooth Operation: The rotor is centrally positioned over bearings to minimize radial forces, reduce power consumption, and extend pump life.
• Fast & Simple Maintenance: Quick hose changes keep downtime and operating costs to a minimum.

Typical Applications

• High-viscosity sludge, slurry, and paste transfer
• Shear-sensitive fluid dosing
• Abrasive and corrosive chemical metering
• Water and wastewater treatment processing

Technical Specifications Overview

Model Range	Max. Flow Rate	Max. Pressure	Max. Temp	Max. Solid Size	Certifications
Dura 5 – Dura 15	23 – 593 l/h	8 – 12 bar	50 – 65 °C	1.25 – 3.75 mm	ATEX, FDA, EC/1935
Dura 25 – Dura 55	2,387 – 15,300 l/h	12 – 16 bar	65 – 90 °C	6.25 – 13.75 mm	ATEX, FDA, EC/1935
Dura 60 – Dura 100	16,500 – 55,000 l/h	16 bar	100 °C	15 – 25 mm	ATEX, FDA CFR21, EC/1935
