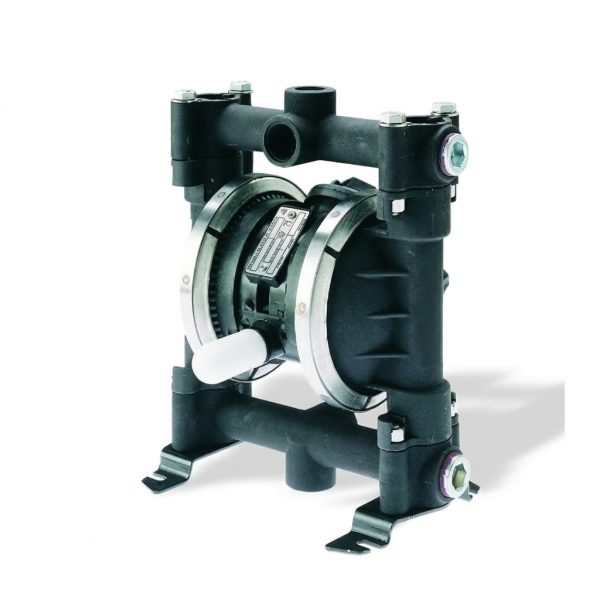

Graco Husky 716 Air Operated Double Diaphragm Pump
Graco Husky 716 3/4-inch air-operated double diaphragm pump with remote control capability, aluminum or stainless steel construction, and multiple material options.
Graco Husky 716 Air Operated Double Diaphragm Pump
Product Overview
The Graco Husky 716 is an air-operated double diaphragm pump designed for industrial fluid handling applications. It features an external controller for remote control capabilities and offers center and end porting configurations.
The pump has no mechanical seals, helping reduce the risk of fluid leakage and seal failure. Its air valve and ball checks are designed for easy servicing.
Key Features
- 3/4-inch (19.05 mm) fluid ports
- Air-operated double diaphragm pump design
- External controller for remote operation
- Center and end porting options
- No mechanical seals
- Quiet operation below 85 dBa
- Remote muffler capability for reduced noise
- Serviceable air valve and ball checks
- Aluminum or stainless steel fluid section options
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Graco |
| Product Series | Husky 716 |
| Pump Type | Air Operated Double Diaphragm Pump |
| Port Size | 3/4 inch (19.05 mm) |
| Porting Options | Center and end porting |
| Control | External controller for remote operation |
| Fluid Section Materials | Aluminum, Stainless Steel |
| Seat Materials | Stainless Steel, Acetal, Polypropylene, Urethane Duckbill |
| Ball Materials | PTFE, Santoprene, Buna-N, TPE (Hytrel), 316 Stainless Steel, Urethane Duckbill |
| Diaphragm Materials | Fluoroelastomer, Buna-N, Santoprene, PTFE Overmold, PTFE/EPDM 2-Piece, TPE (Hytrel) |
| Noise Level | Below 85 dBa |
Available Models and Material Configurations
The Graco Husky 716 series is available in different material combinations. Listed part numbers include:
| Part Number | Fluid Section Material | Seat Material | Ball Material | Diaphragm Material |
|---|---|---|---|---|
| 241407 | Aluminum | Polypropylene | Buna-N | Buna-N |
| 241408 | Aluminum | Polypropylene | Buna-N | Buna-N |
| 243306 | Aluminum | Acetal | Buna-N | Buna-N |
| 243307 | Aluminum | Acetal | PTFE | PTFE/EPDM 2-Piece |
| 24B674 | Stainless Steel | Stainless Steel | PTFE | PTFE/EPDM 2-Piece |
| 24N258 | Aluminum | Stainless Steel | PTFE | PTFE Overmold |
| 24N259 | Aluminum | Stainless Steel | 316 Stainless Steel | PTFE Overmold |
| 24N261 | Stainless Steel | Stainless Steel | PTFE | PTFE Overmold |
| 24N262 | Stainless Steel | Stainless Steel | 316 Stainless Steel | PTFE Overmold |
| D53211 | Aluminum | Acetal | PTFE | PTFE/EPDM 2-Piece |
| D53255 | Aluminum | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| D53277 | Aluminum | Acetal | Buna-N | Buna-N |
| D53311 | Aluminum | Stainless Steel | PTFE | PTFE/EPDM 2-Piece |
| D53331 | Aluminum | Stainless Steel | 316 Stainless Steel | PTFE/EPDM 2-Piece |
| D53336 | Aluminum | Stainless Steel | 316 Stainless Steel | Santoprene |
| D53337 | Aluminum | Stainless Steel | 316 Stainless Steel | Buna-N |
| D53338 | Aluminum | Stainless Steel | 316 Stainless Steel | Fluoroelastomer |
| D53366 | Aluminum | Stainless Steel | Santoprene | Santoprene |
| D53377 | Aluminum | Stainless Steel | Buna-N | Buna-N |
| D53388 | Aluminum | Stainless Steel | FKM (Viton) | FKM (Viton) |
| D53911 | Aluminum | Polypropylene | PTFE | PTFE/EPDM 2-Piece |
| D53955 | Aluminum | Polypropylene | TPE (Hytrel) | TPE (Hytrel) |
| D53966 | Aluminum | Polypropylene | Santoprene | Santoprene |
| D53977 | Aluminum | Polypropylene | Buna-N | Buna-N |
| D53D07 | Aluminum | Urethane Duckbill | Urethane Duckbill | Buna-N |
| D54211 | Stainless Steel | Acetal | PTFE | PTFE/EPDM 2-Piece |
| D54311 | Stainless Steel | Stainless Steel | PTFE | PTFE/EPDM 2-Piece |
| D54331 | Stainless Steel | Stainless Steel | 316 Stainless Steel | PTFE/EPDM 2-Piece |
| D54336 | Stainless Steel | Stainless Steel | 316 Stainless Steel | Santoprene |
| D54366 | Stainless Steel | Stainless Steel | Santoprene | Santoprene |
| D54381 | Stainless Steel | Stainless Steel | Fluoroelastomer | PTFE/EPDM 2-Piece |
| D54388 | Stainless Steel | Stainless Steel | FKM (Viton) | FKM (Viton) |
| D54911 | Stainless Steel | Polypropylene | PTFE | PTFE/EPDM 2-Piece |
| D54966 | Stainless Steel | Polypropylene | Santoprene | Santoprene |
Additional part numbers are available in the manufacturer’s ordering information. Please confirm the complete part number and material combination before ordering.
