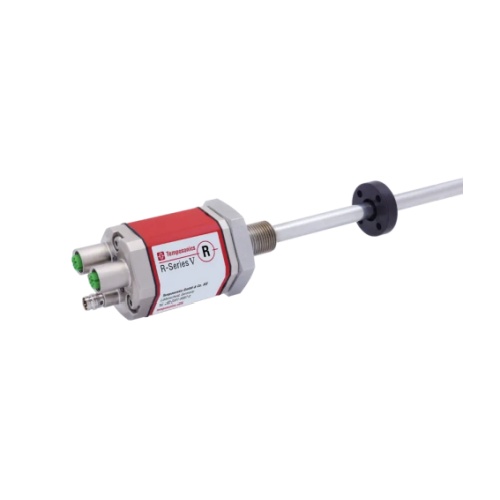

Temposonics R-Series V RH5 Magnetostrictive Linear Position Sensor

Temposonics R-Series V RH5 Magnetostrictive Linear Position Sensor

The Temposonics® R-Series V RH5 is a high-performance rod-style magnetostrictive linear position sensor engineered for demanding in-cylinder hydraulic applications. Featuring stroke lengths from 25 to 7,620 mm (1–300 in.), vibration resistance up to 30 g, and shock resistance up to 150 g, it provides industry 4.0 diagnostic feedback via TempoLink® or TempoGate® smart assistants. Available with PROFINET, EtherCAT®, EtherNet/IP™, POWERLINK, SSI, and Analog outputs.

Category: Brand:

Overview

Delivering exceptional accuracy and rugged durability for hydraulic cylinders, the Temposonics® R-Series V RH5 Magnetostrictive Linear Position Sensor represents the 5th generation of industry-leading position sensing technology. Designed for heavy-duty in-cylinder integration, the RH5 rod sensor provides real-time position and velocity feedback alongside advanced Industry 4.0 diagnostic status data accessible via TempoLink® or TempoGate® smart assistants.

Key Features & Advantages

  • In-Cylinder Design: Heavy-duty rod construction engineered specifically for high-pressure hydraulic cylinder feedback.
  • Flexible Sensing Element Option: Optional flexible sensor rod available for simplified transport and long-stroke installations.
  • Rugged Environmental Performance: Built to withstand vibration up to 30 g and shock up to 150 g with an operating temperature range of -40°C to +85°C (-40°F to +185°F).
  • Multi-Position & High Precision: Measure up to 30 magnet positions simultaneously with resolution down to 0.1 µm.
  • Smart Diagnostics: Real-time output of sensor health, temperature, and operating statistics through TempoLink® and TempoGate® interfaces.
  • Global Certifications: CE, UL/cUL, and UKCA certified with an optional 5-year extended warranty.

Technical Specifications Overview

Output Interface Stroke Length Resolution Multi-Position Capability
PROFINET 25 – 7620 mm (1 – 300 in.) 0.5 µm Up to 30 positions
EtherCAT® 25 – 7620 mm (1 – 300 in.) 0.5 µm Up to 30 positions
EtherNet/IP™ 25 – 7620 mm (1 – 300 in.) 1 µm Up to 20 positions
POWERLINK 25 – 7620 mm (1 – 300 in.) 0.5 µm Up to 30 positions
SSI 25 – 7620 mm (1 – 300 in.) 0.1 µm Single Position
Analog (Voltage/Current) 25 – 7620 mm (1 – 300 in.) 16-bit Up to 2 positions

General Specifications

Brand / Manufacturer Temposonics (An Amphenol Company)
Series / Model R-Series V / RH5 Rod Sensor
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Vibration Resistance 30 g (10–2000 Hz, IEC 60068-2-6)
Shock Resistance 150 g (11 ms, IEC 60068-2-27)

Typical Applications

  • In-cylinder position feedback for industrial hydraulic cylinders
  • Injection molding machinery and die-casting presses
  • Steel mill and metallurgy processing equipment
  • Wind turbine pitch and yaw control systems
  • Marine and offshore hydraulic cylinder position monitoring
