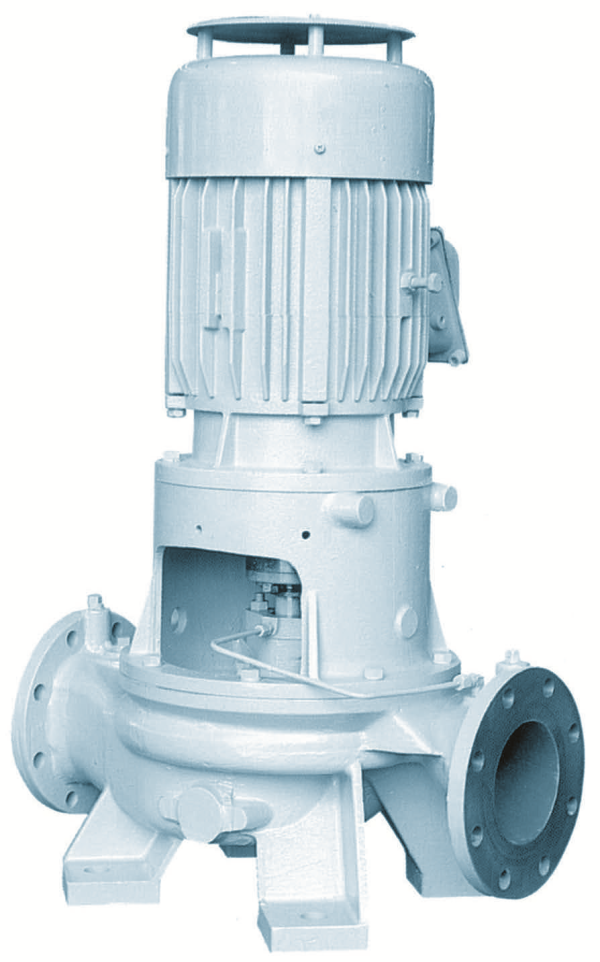

TAIKO EMC Seawater Centrifugal Pump
TAIKO (Daiho) marine centrifugal pumps are designed for reliable seawater and general marine fluid transfer. PandaLyx supplies pump models and spare parts for marine and industrial applications. Please contact us for model selection, specifications, and quotations.
TAIKO EMC Centrifugal Pump
Closed-Coupled, Vertical Single-Stage Centrifugal Pump
The TAIKO EMC series is designed for seawater and fresh water
service. It offers a compact pump arrangement for marine
cooling and general water circulation systems.
Product Overview
The TAIKO EMC centrifugal pump series is used for marine
water-handling applications, including cooling fresh water,
cooling seawater, and seawater service. The series includes
several model sizes, with different motor power options
depending on the selected pump.
PandaLyx can assist with pump sourcing and spare parts
inquiries. Please provide the complete model number,
nameplate photo, or existing pump details to help confirm
the required configuration.
EMC
TAIKO pump series
TAIKO pump series
1800
Rated speed shown in supplied data (min⁻¹)
Rated speed shown in supplied data (min⁻¹)
100–250
Nominal suction/discharge sizes shown (mm)
Nominal suction/discharge sizes shown (mm)
Marine
Freshwater and seawater applications
Freshwater and seawater applications
Key Features
01 / APPLICATION
Marine Water Service
Designed for suitable fresh water and seawater
circulation duties on marine systems.
02 / CONSTRUCTION
Closed-Coupled Design
A closed-coupled arrangement helps simplify the
overall installation layout.
03 / PUMP TYPE
Centrifugal Operation
Centrifugal pump design for continuous circulation
where operating conditions are suitable.
04 / MATERIALS
Material Options
Supplied material data lists bronze, cast iron,
stainless steel, rubber, and other metals.
05 / MODEL RANGE
Multiple Sizes
The supplied schedule covers several EMC model
sizes and motor power options.
06 / SUPPORT
Model Identification
Model and nameplate details help verify the correct
pump or replacement component.
Applications
Cooling Fresh Water Pump
Cooling Sea Water Pump
Sea Water Service Pump
Marine Cooling Systems
Fresh Water Circulation
Seawater Circulation
Model Range & Main Specifications
The following table summarizes the EMC model information
visible in the supplied technical schedule.
| Model | Motor Power Options (kW) | Speed (min⁻¹) | Suction (mm) | Discharge (mm) |
|---|---|---|---|---|
| EMC-100C | 5.5, 7.5, 11 | 1800 | 100 | 100 |
| EMC-125C | 7.5, 11, 15 | 1800 | 125 | 125 |
| EMC-150C | 11, 15, 18.5, 22, 26 | 1800 | 150 | 150 |
| EMC-200C / EMC-201C | 15, 18.5, 22, 26, 30, 37 | 1800 | 200 | 200 |
| EMC-250C / EMC-251C | 22, 26, 30, 37, 45, 55 | 1800 | 250 | 250 |
| EMC-260C | 30, 37, 45, 55, 65, 75 | 1800 | 250 | 250 |
Model selection:
Motor power options above are summarized from the supplied
schedule. Please confirm the exact model, power rating,
performance curve, and connection details before ordering.
Motor power options above are summarized from the supplied
schedule. Please confirm the exact model, power rating,
performance curve, and connection details before ordering.
Structure & Materials
The source schedule lists separate material specifications
for seawater and freshwater service. Confirm material codes
against the original manufacturer documentation for the
exact pump model.
| Part No. | Part Name | Qty. | Seawater Material | Freshwater Material |
|---|---|---|---|---|
| 001 | Casing | 1 | CAC402 — Bronze | FC200 — Cast Iron |
| 002 | Casing Cover | 1 | CAC402 — Bronze | FC200 — Cast Iron |
| 003 | Impeller | 1 | CAC502A — Phosphor Bronze | CAC502A — Phosphor Bronze |
| 020 | Casing Ring | 1 | CAC402 — Bronze | CAC402 — Bronze |
| 021 | Casing Ring | 1 | CAC402 — Bronze | CAC402 — Bronze |
| 050 | O-Ring | 1 | NBR — Rubber | NBR — Rubber |
| 061 | Fixing Plate | 8 | FCD400 — Ductile Cast Iron | FCD400 — Ductile Cast Iron |
| 101 | Shaft | 1 | SUS304 — Stainless Steel | SUS304 — Stainless Steel |
| 103 | Impeller Key | 1 | SUS304 — Stainless Steel | SUS304 — Stainless Steel |
| 120 | Impeller Nut | 1 | SUS304 — Stainless Steel | SUS304 — Stainless Steel |
| 124 | Impeller Washer | 1 | SUS304 — Stainless Steel | SUS304 — Stainless Steel |
| 136 | Spring Washer | 1 | SUS304 — Stainless Steel | SUS304 — Stainless Steel |
| 158 | Set Screw | 1 | SCM435 — Cr-Mo Steel | SCM435 — Cr-Mo Steel |
| 159 | Stopper Ring | 1 | SS400 — Mild Steel | SS400 — Mild Steel |
| 301 | Coupling | 1 | SS400 — Mild Steel | SS400 — Mild Steel |
| 305 | Coupling Bolt | 4 | SCM435 — Cr-Mo Steel | SCM435 — Cr-Mo Steel |
| 403 | Frame | 1 | FC200 — Cast Iron | FC200 — Cast Iron |
| 501 | Gland Packing | 4 | Carbonized Fiber | Carbonized Fiber |
| 503 | Lantern Ring | 1 | CAC402 — Bronze | CAC402 — Bronze |
| 504 | Gland | 1 | CAC402 — Bronze | CAC402 — Bronze |
Material abbreviations and part quantities are transcribed
from the supplied text. Some source formatting may have
shifted during text extraction. Verify the original parts
list before using this table for purchasing or maintenance.
from the supplied text. Some source formatting may have
shifted during text extraction. Verify the original parts
list before using this table for purchasing or maintenance.
Performance & Selection
Pump performance depends on the selected model, motor rating,
flow rate, total head, and operating conditions. The supplied
performance chart includes multiple motor ratings and curves,
but the extracted text does not clearly preserve every curve
and model association.
| Selection Item | Information Required |
|---|---|
| Pump Model | Complete EMC model number |
| Flow Rate | Required capacity in m³/h |
| Total Head | Required head in metres |
| Motor | Power rating, speed, voltage, and frequency |
| Fluid | Fresh water, seawater, or other compatible fluid |
| Installation | Connection size and available installation dimensions |
